Floor Heating Projects
Noord Brabant Nederland
At a Glance
Here is a small sample of some of our projects.
Milled Anhydrite +
Type - Apartment
Size - 100 m2
Manifold - 9 Group
Extra - Zone Control - 3 Zones
This apartment required 100 m2 of floor milling in an Anhydrite screed. Separate temperature control in three different rooms was handled by a wireless Zone Control system. The milling channels have been filled with a self levelling compound.
Milled Epoxy Poured Floor+
Type - House Renovation
Size - 100 m2
Manifold - 9 group
This project required the floor heating tubes to be milled into an existing epoxy poured floor. Epoxy floors are very hard and increase the milling costs. In addition, this floor required a specific primer to be applied to bond the filler for the milling channels to the floor. Then a specific type of primer to bond the top levelling agent to the floor. Once cured, the smooth layer in the photo will be the base for PVC floor covering.

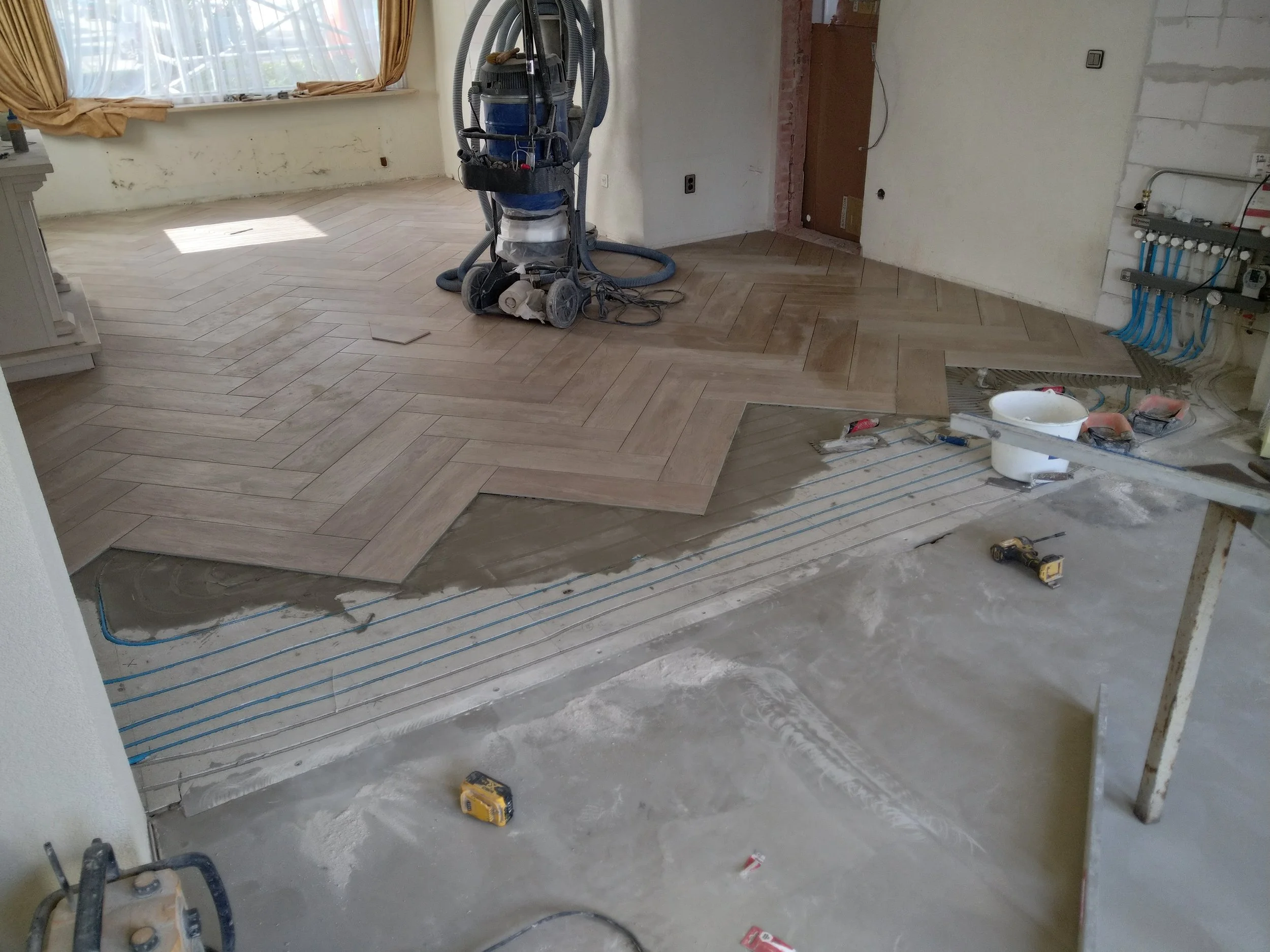

Combination Floor: Fermacell over wood + Sand/Cement Sub-Floor
Type - House
Renovation - Breda
Manifold - 9 Group
Combination floor
In this project Fermacell boards were installed in the living room area and then milled for floor heat tubing. The dinning room had a sand/cement sub-floor with existing floor heating. The existing floor heat tubing was connected to the new larger manifold. Then the sand/cement sub-floor was levelled to equal the height of the Fermacell boards in the living room The entire floor was tiled for a seamless finish.
Milled Tile Floor+
Type - Bungalow House
Renovation- Den Bosch
Manifold -11 Group
Zone Control - 5 zones
This project required floor heating in the entire bungalow. The ceramic tile in the house was in very good condition and it was possible to mill directly into the tile. The photo shows the heating tubes installed and the application of a high quality flexible tile glue to fill the channels. New tile was installed throughout the house.
